Motorola · phone · 2017

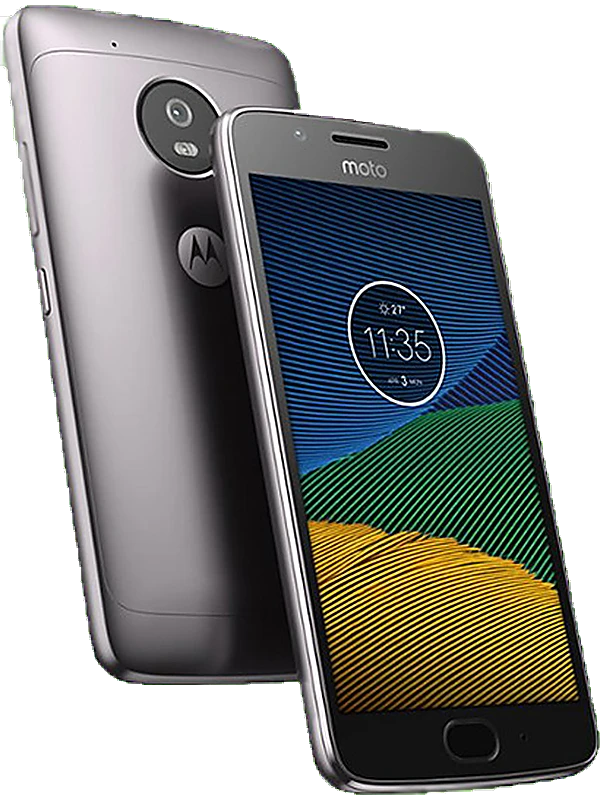

Motorola Moto G5

Motorola Moto G5

5"

1080 x 1920 pixels

Snapdragon 430 (28 nm)

Android 7.0 Nougat

2 GB, 3 GB

microSDXC

13 MP

Selfie 5 MP

Announced: 2017-02-12
Released: 2017-03-12
Status: Discontinued
Body: 145 g, 9.5 mm thickness
OS: Android 7.0 Nougat
Colors: Fine Gold, Sapphire Blue, Lunar Grey

Network

4

2G bands: R-GSM-900
P-GSM-900
T-GSM-900
E-GSM-900
DCS-1800
GSM-850
3G bands: B25 (1900 MHz)
B8 (900 MHz)
B2 (1900 MHz)
B5 (850 MHz)
B26 (850 MHz)
4G bands: B3 (1800 MHz)
B20 (800 MHz)
B38 (2600 MHz)
B5 (850 MHz)
B28 (700 MHz)
B40 (2300 MHz)
B1 (2100 MHz)
B7 (2600 MHz)
SIM: Single SIM (Nano-SIM)
Dual SIM (Nano-SIM)

Body

9

Form factor: Bar
Height: 144.3 mm
Width: 73 mm
Thickness: 9.5 mm
Weight: 145 g
Colors: Fine Gold
Sapphire Blue
Lunar Grey
Back material: aluminum/plastic
Frame material: Plastic
QWERTY keyboard: ✕ No

Platform

2

OS: Android 7.0 Nougat
Chipset: Snapdragon 430 (28 nm)

Memory

3

Memory: 2GB RAM, 16GB
2GB RAM, 32GB
3GB RAM, 32GB
Card slot: microSDXC
Dedicated card slot: ✓ Yes

Display

8

Size: 5"
Resolution width: 1080 px
Resolution height: 1920 px
Pixel density: 441 ppi
High refresh rate: ✕ No
Display area: 68.9 cm²
Screen-to-body ratio: 65.4%
Technology: IPS LCD

Main camera

5

Cameras: 13MP, f/1.8, standard, PDAF
Flash: LED
Video: 1080p@30fps
HDR: ✕ No
Panorama: ✓ Yes

Selfie camera

3

Cameras: 5MP, f/2, standard, AF
HDR: ✕ No
Pop-up camera: ✕ No

Sound

3

3.5mm jack: ✓ Yes
Stereo speakers: ✕ No
Loudspeaker: ✓ Yes

Sensors

7

Fingerprint: front-mounted
Gyroscope: ✓ Yes
Compass: ✕ No
Barometer: ✕ No
Heart rate: ✕ No
Accelerometer: ✓ Yes
Proximity: ✓ Yes

Connectivity

7

Wi-Fi: 802.11b (1–11 Mbit/s)
Wi‑Fi 6 (802.11ax) (600–9608 Mbit/s)
Wi‑Fi 4 (802.11n) (72–600 Mbit/s)
802.11g (6–54 Mbit/s)
Wi‑Fi 6E (802.11ax) (600–9608 Mbit/s)
Wi‑Fi 5 (802.11ac) (433–6933 Mbit/s)
802.11a (6–54 Mbit/s)
Bluetooth: Bluetooth 4.2
USB: USB microUSB 2.0
USB On-The-Go
GPS: ✓ Yes
NFC: ✕ No
Infrared port: ✕ No
FM radio: ✓ Yes

Battery

5

Capacity: 2800 mAh
Type: Li-ion
Charging power: 10 W
Removable: ✓ Yes
Wireless charging: ✕ No
