OnePlus · phone · 2017

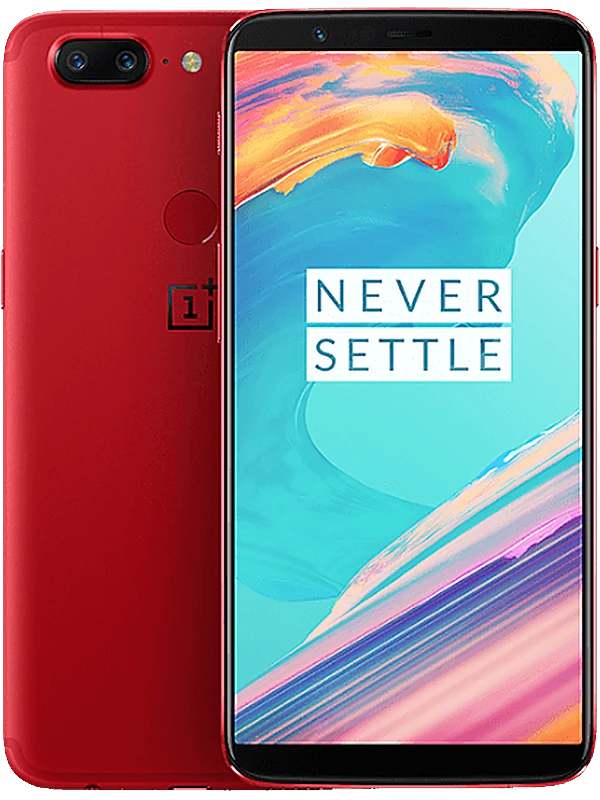

OnePlus 5T

OnePlus 5T

6.01"

1080 x 2160 pixels

Snapdragon 825

Android 7.1 Nougat

6 GB, 8 GB

Memory

20+16 MP

Selfie 16 MP

Announced: 2017-11-16
Released: 2017-11-21
Status: Discontinued
Body: 162 g, 7.3 mm thickness
OS: Android 7.1 Nougat
Colors: Midnight Black, Lava Red, Sandstone White

Network

4

2G bands: R-GSM-900
DCS-1800
E-GSM-900
GSM-850
P-GSM-900
T-GSM-900
3G bands: B25 (1900 MHz)
B2 (1900 MHz)
B5 (850 MHz)
B26 (850 MHz)
B8 (900 MHz)
4G bands: B1 (2100 MHz)
B3 (1800 MHz)
B30 (2300 MHz)
B28 (700 MHz)
B29 (700 MHz)
B41 (2500 MHz)
B12 (700 MHz)
B26 (850 MHz)
SIM: Dual SIM (Nano-SIM)

Body

8

Height: 156.1 mm
Width: 75 mm
Thickness: 7.3 mm
Weight: 162 g
Colors: Midnight Black
Lava Red
Sandstone White
Back material: Aluminum
Frame material: Aluminum
QWERTY keyboard: ✕ No

Platform

2

OS: Android 7.1 Nougat
Chipset: Snapdragon 825

Memory

2

Memory: 6GB RAM, 64GB
8GB RAM, 128GB
Dedicated card slot: ✕ No

Display

8

Size: 6.01"
Resolution width: 1080 px
Resolution height: 2160 px
Pixel density: 401 ppi
High refresh rate: ✕ No
Display area: 93.7 cm²
Screen-to-body ratio: 80%
Technology: Optic AMOLED

Main camera

4

Cameras: 20MP, f/1.8, wide, PDAF, AF
16MP, f/1.8, wide, PDAF
Flash: Dual-LED
HDR: ✓ Yes
Panorama: ✓ Yes

Selfie camera

3

Cameras: 16MP, wide, AF
HDR: ✓ Yes
Pop-up camera: ✕ No

Sound

3

3.5mm jack: ✓ Yes
Stereo speakers: ✕ No
Loudspeaker: ✓ Yes

Sensors

7

Fingerprint: rear-mounted
Gyroscope: ✓ Yes
Compass: ✓ Yes
Barometer: ✕ No
Heart rate: ✕ No
Accelerometer: ✓ Yes
Proximity: ✓ Yes

Connectivity

7

Wi-Fi: Wi‑Fi 4 (802.11n) (72–600 Mbit/s)
802.11b (1–11 Mbit/s)
802.11a (6–54 Mbit/s)
Wi‑Fi 6E (802.11ax) (600–9608 Mbit/s)
Wi‑Fi 5 (802.11ac) (433–6933 Mbit/s)
802.11g (6–54 Mbit/s)
Wi‑Fi 6 (802.11ax) (600–9608 Mbit/s)
Bluetooth: Bluetooth 5.0
USB: USB Type-C 2.0
GPS: ✓ Yes
NFC: ✓ Yes
Infrared port: ✕ No
FM radio: ✕ No

Battery

5

Capacity: 3300 mAh
Type: Li-Po
Charging power: 20 W
Removable: ✕ No
Wireless charging: ✕ No
